ECG PM80 HandHeld & Spo2/Bluetooth

Description

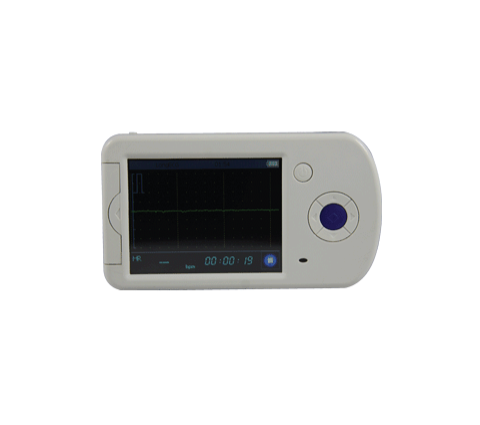

The portable ECG monitor PM80 Contec is a portable device for recording the movement of the heart. It is designed for daily home health care. The cardiograph is characterized by its light weight and its size, by which he is eminently suitable as a hand-ECG monitor. The PM80 is easy to use and allows a quick test. Product Description: patient monitor, LED backlight, touch screen display: ECG waveform, heart rate and heart rhythm, built-in memory for more than 5000 data storage (depending on the capacity of the SD card), power level indicator and automatic switch-off in sleep mode.

CONTEC ECG PM80 HANDHELD PRODUCTION CHARACTERISTIC:

3.5-inch color TFT touch-screen.
Adopting built-in electrodes can observe a single-lead ECG waveform fast.
Continuous ECG monitoring mode.
Achieving separate ECG, Oximeter collection, and mixed collection.
Analyse accurately, display intuitionistic and pellucid.
Integrated case manage function, review, delete, storage case.
TF mass memory medium.
Carry through diversified settings according to user needs.
Have divers form system tools, in order to provide more close service to user.
Have mass rechargeable li-polymer battery.
ECG:

Calibration Voltage: 1mV ± 5%.
Standard Sensitivity: 10mm/mV ± 5%.
Noise Level: ≤30μV.
Common-mode rejection ratio: ≥ 60 dB.
Scan rate: 25mm/s ± 5%.
Sampling frequency: no less than 400point/s.
Enduring polarization voltage: ±500mV
OXIMETER:SPO2:

Measuring Range: 0~100%
Absolute error permit ± 2%, the metrical results display in the range with 70%~100%.
Less than 70% is not defined.
PULSE RATE:

Measuring range: 35bpm~250bpm.
Error ± 2bpm or 2% which is greater.
CONTEC ECG PM80 HANDHELD ACCESSORIES: SELL IN STANDARD:

A user manual
2GB T-Flash card
ECG Cable
Disposable electrodes
High-quality bag
A power adapter（5V/1A）
A data line
A disk (PC software)
Sell in addition:
An oximeter probe
Bluetooth
Physical Identity

DIMENSION: 131MM (L) × 74 MM(W) × 28MM (H)
WEIGHT: ABOUT140G
